DIY Fuse Advanced. Two-step current and overvoltage protection
Regular price
$7.99
Tax included.
Shipping calculated at checkout.

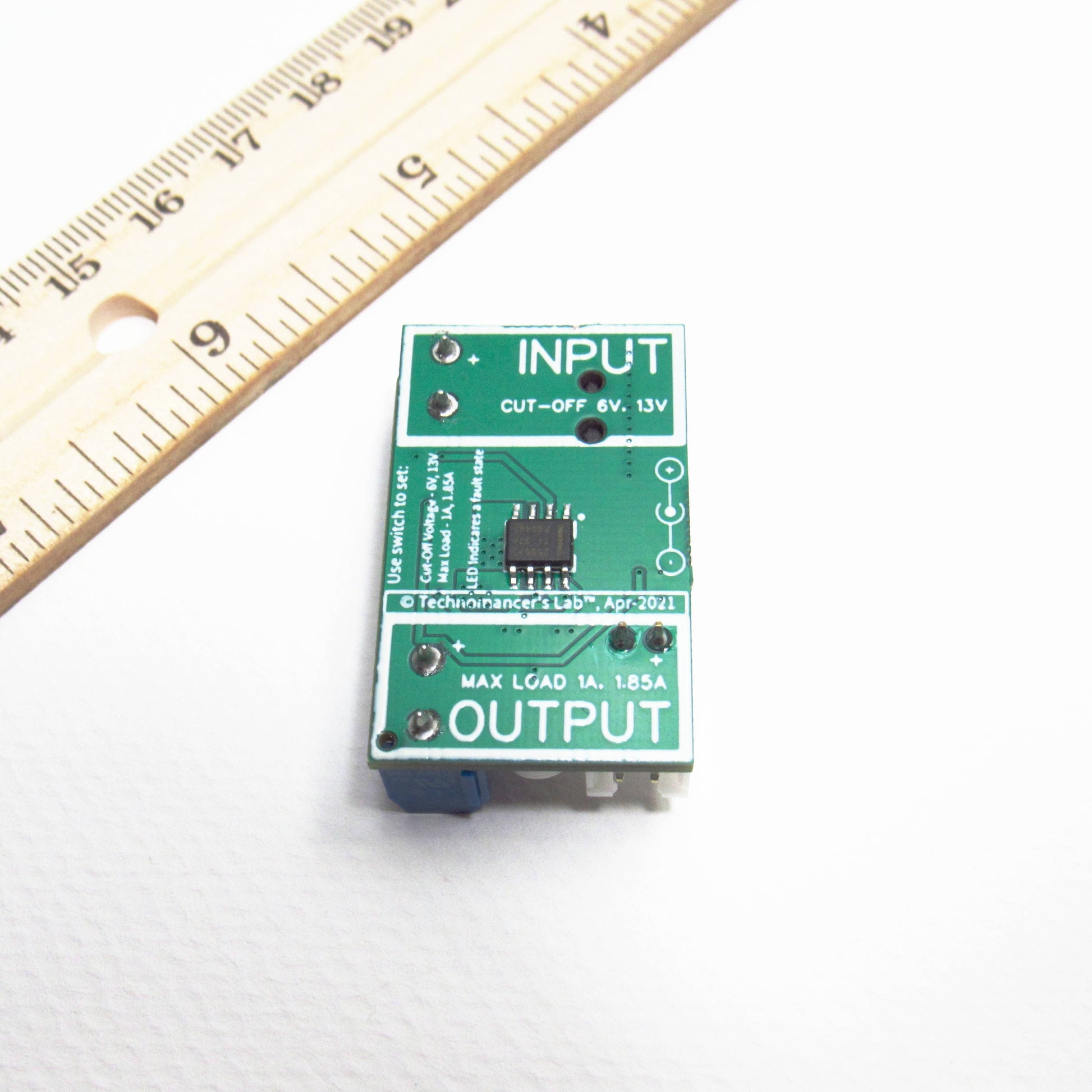

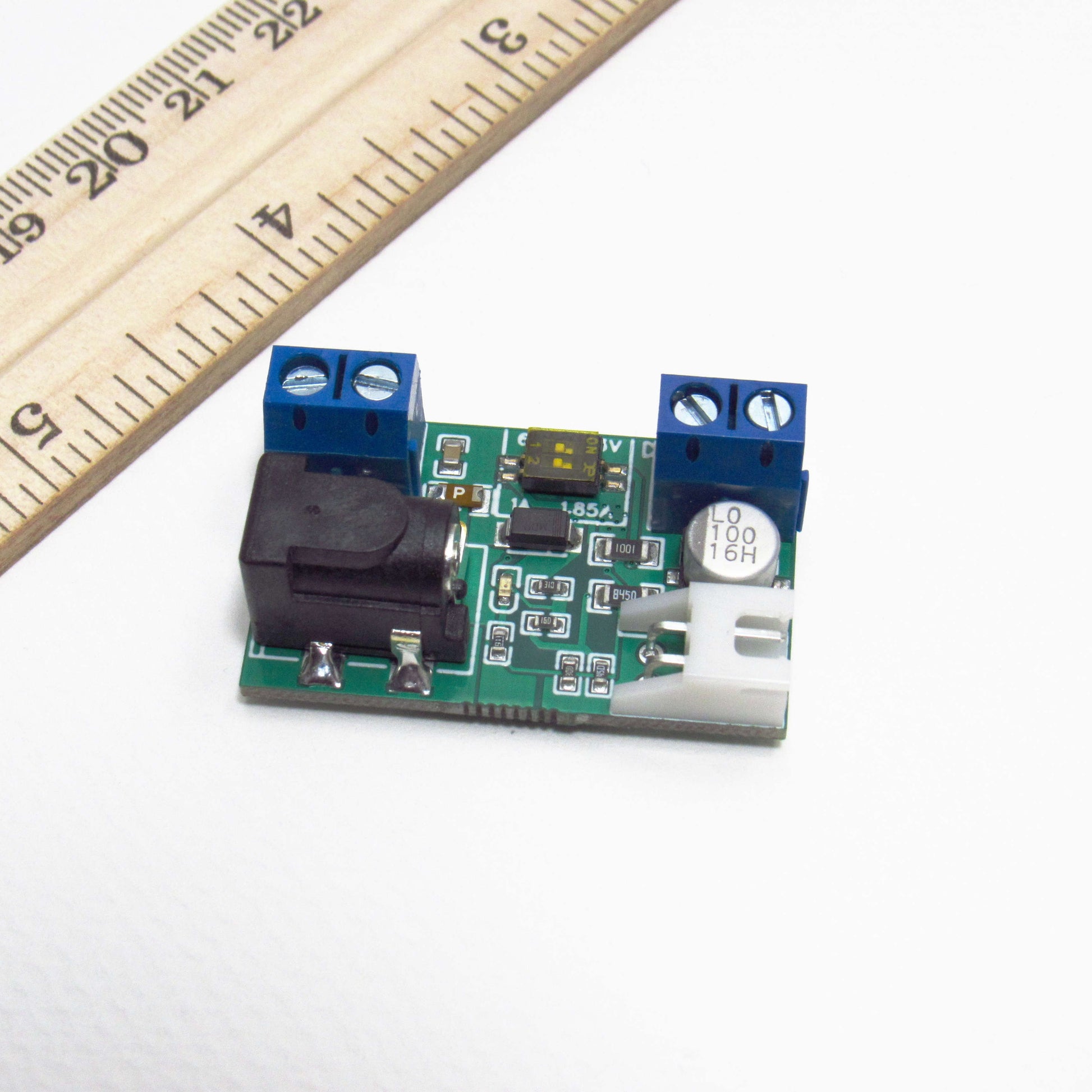

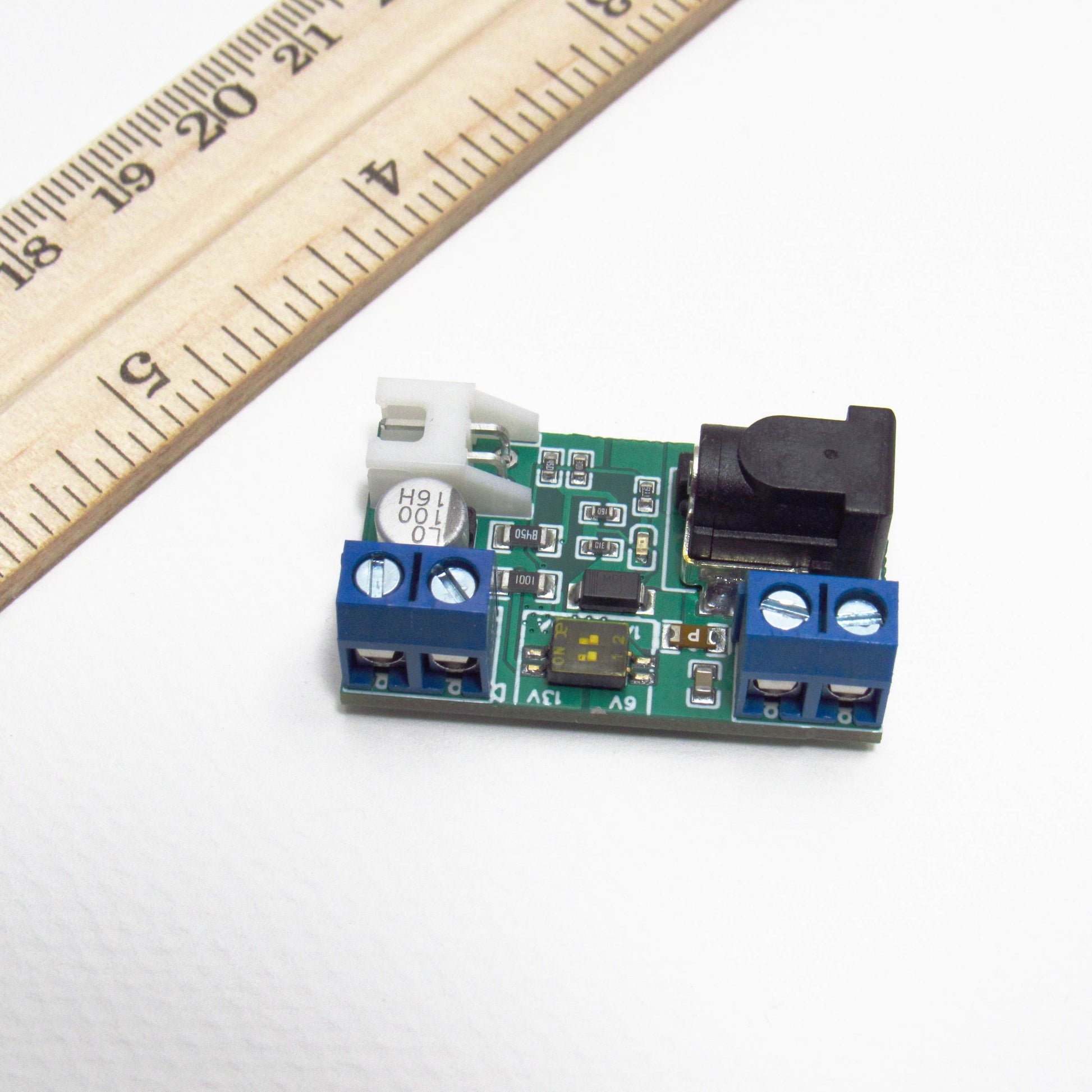

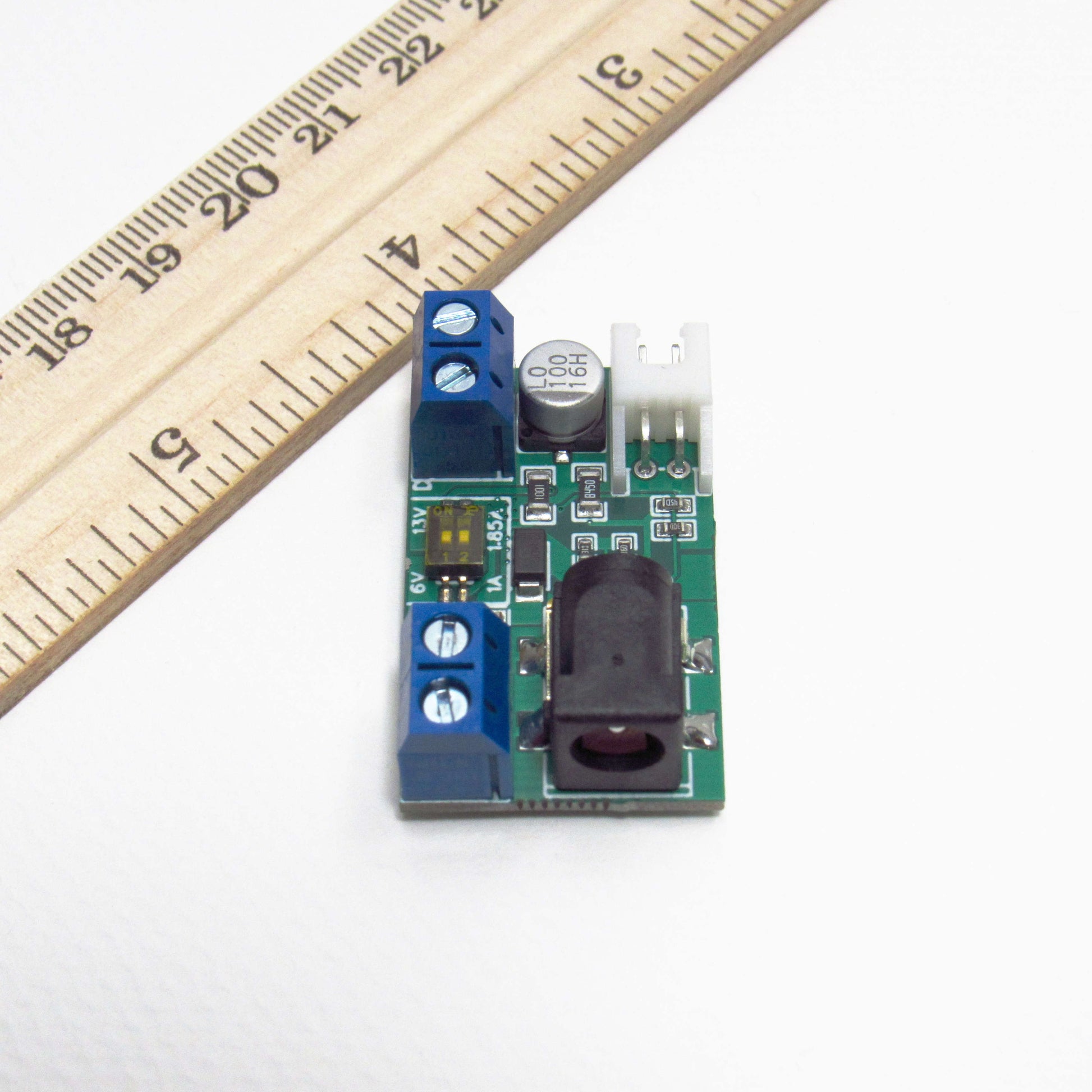

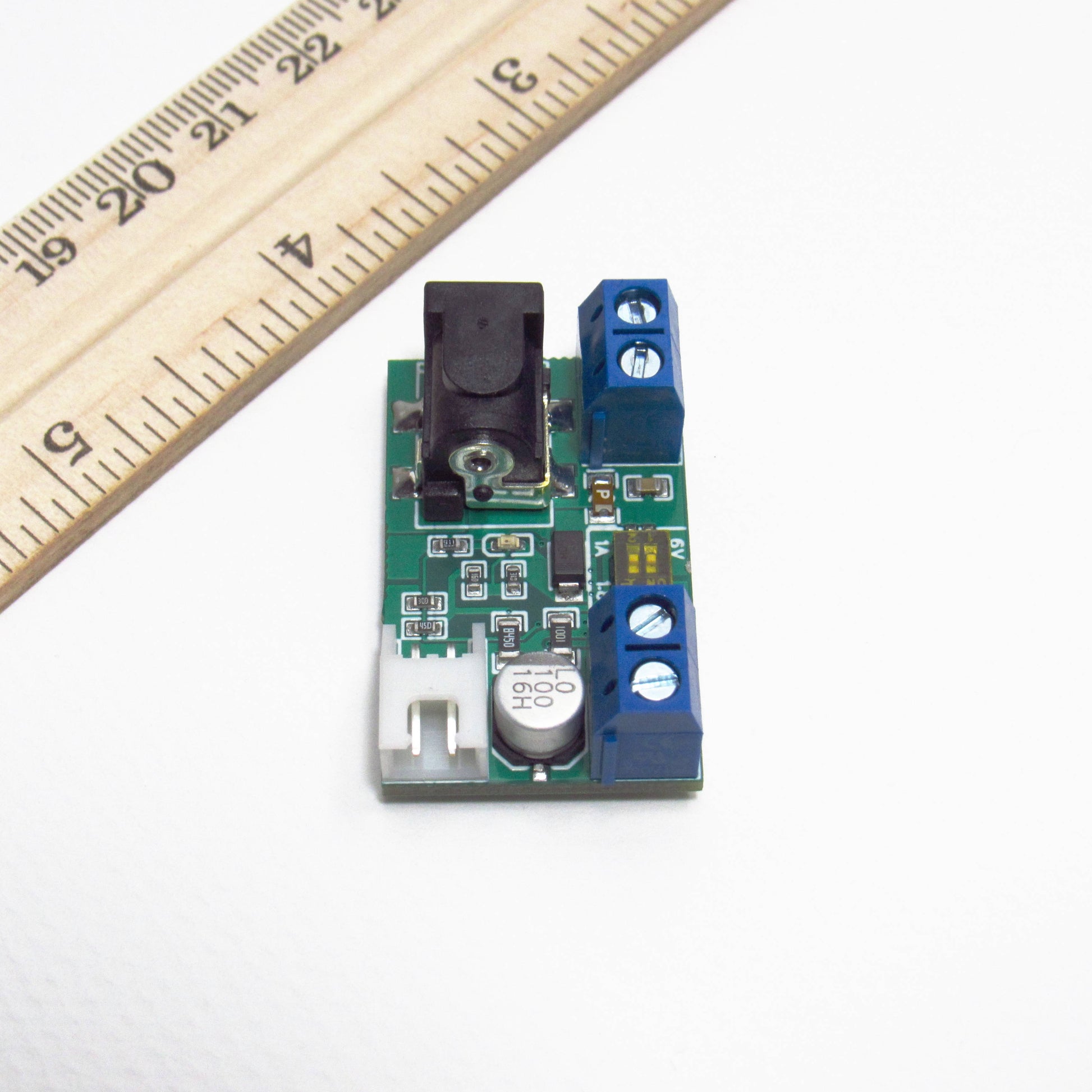

Use our fuse to protect your power supplies and projects from overvoltage, reverse polarity, or short circuits. Insert the device between the power supply and the load, and enjoy safe use of your development.
Please, see the detailed manual and technical specs here.
Just look at these features:
Please, see the detailed manual and technical specs here.
Just look at these features:
- Two-step protection:
- Programmable logic fuse cuts off the load when the power supply has overvoltage or the load gets short.
- Hardware fuse. Last resort 3 Amps fuse would cut off the load if the electronic fuse failed.
- Reverse polarity protection
- Adjustable overvoltage protection. You can set the cut-off on 6 or 13 volts.
- Adjustable current protection. You can set the cut-off on 1 or 1.85 amps.
- Two input connectors: Jack 5x2.1 mm and screwed connector. They can help if you want to avoid the soldering.
- Two output connectors: screwed connector and JST XH connector that fits all Technomancer's Lab™ products
- Failure indicator
The kit includes:
- A fuse itself
- Output JST XH wire to connect Technomancer's Lab™ products
