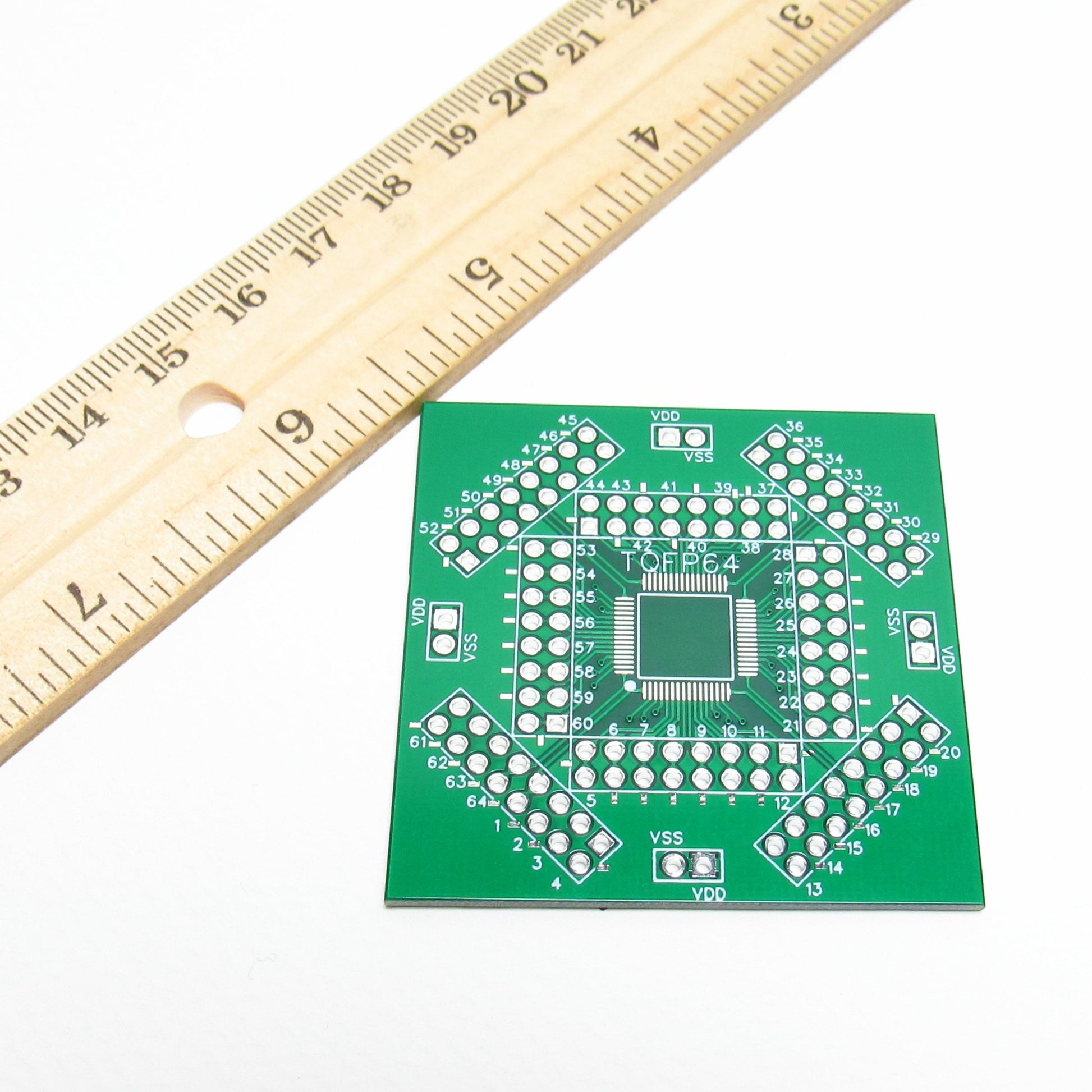

TQFP64 Prototype Board, Bread Board

$1.99

Tax included. Shipping calculated at checkout.

Clean Prototype Board for footprint type TQFP64. Fits for soldering microcontrollers to create your own discovery board. Make sure that the footprint of a board you are ordering is suitable for your kind of MCU. If you're not sure whether it fits your MCU, ask us on our Discussion Page

Features:

Fits microcontrollers with TQFP package type
4 power connectors that connect to the top and bottom copper layers allow you to distribute power between several pins (VDD and VDDA for example)
Each pin has a doubled connection
Easy connect to GND and VCC layers to solder necessary SND components
Two-layer high-quality PCB

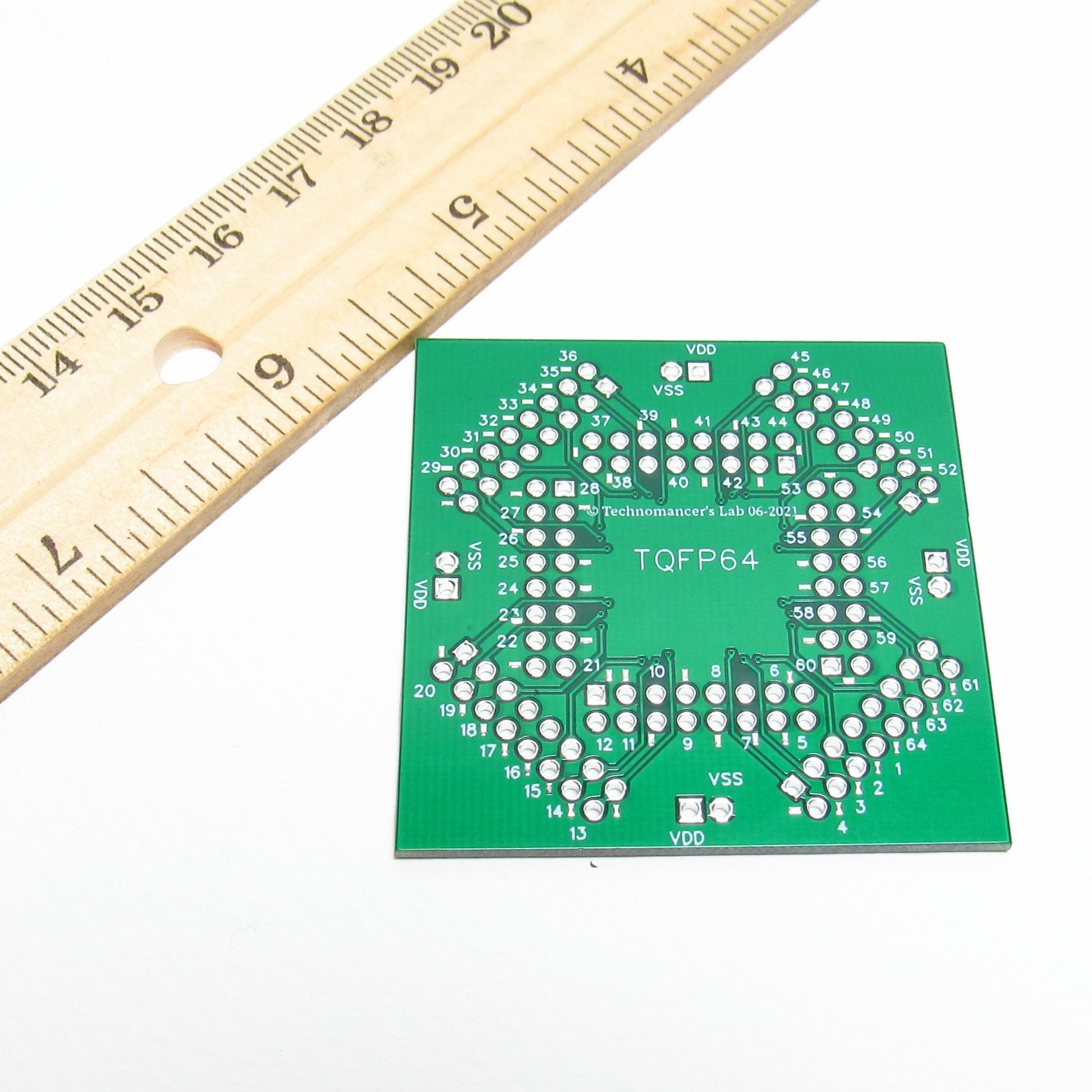

Pin numbers printed on both sides allow you to navigate between pins easily

Originally I created this board project after I failed to find something that satisfied me. I used it for solder TMS320F28035 MCU for solar DC-DC converter
